Cybotrade Datasource API key

The use of Provider Datasource data requires that you get an API key from Cybotrade Datasource.

Once you have successfully generated an API key, you will be able to see your API key and secret like such:

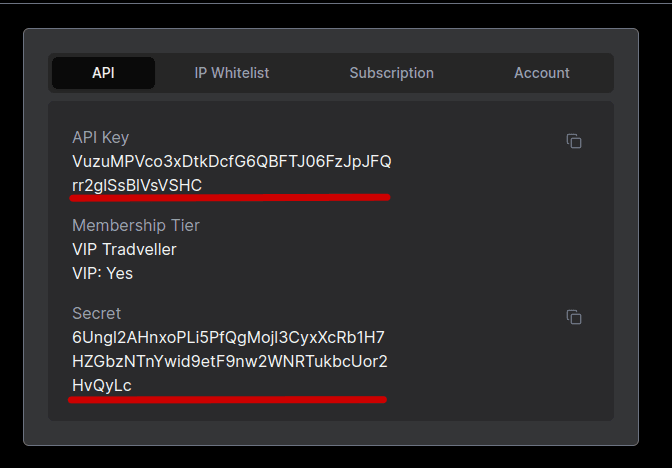

Example of an API Key and Secret

In order to access the data programmatically, you will need to input the api_key and api_secret parameter for the RuntimeConfig class like such:

config = RuntimeConfig(
    ...
    api_key="YOUR_API_KEY",
    api_secret="YOUR_API_SECRET"
)

Accessing the data in code.

In order to access the data you retrieve, you will have to use a field exposed by the Strategy class called data_map or split_data_map.

For a further in-depth look to the difference between the data_map and split_data_map check here.

If you followed the overview guide you should be aware that there is an event handler that can be overidden for when a candle closes which is on_candle_closed().

There is also an event handler for when Provider Datasource data has been updated which is on_datasource_interval().

Shown below is a simple use of this on_datasource_interval event handler.

This example is assuming that the datasource_topic being used is cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day and candle_topic is bybit-linear|candles?interval=1m&symbol=BTCUSDT

async def on_datasource_interval(self, strategy, topic, data_list):
    # refer to provider models
    inflow_total = self.data_map[topic][-1]["inflow_total"]
    inflow_mean = self.data_map[topic][-1]["inflow_mean"]

You might notice that the topic is returned through the parameters of the event_handler function, this topic is used to index into the data_map dictionary. You are also able to index the data_map manually like such:

async def on_datasource_interval(self, strategy, topic, data_list):
    # refer to provider models
    inflow_total = self.data_map["cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day"][-1]["inflow_total"]
    inflow_mean = self.data_map["cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day"][-1]["inflow_mean"]

This access pattern is also used for accessing candle data:

async def on_candle_closed(self, strategy, topic, symbol):
    latest_close = self.data_map[topic][-1]["close"]
    open_price = self.data_map[topic][-1]["open"]

Note that you are also able to access datasource topic from the candle close event handler and vice versa:

async def on_datasource_interval(self, strategy, topic, data_list):
    latest_close = self.data_map["bybit-linear|candles?interval=1m&symbol=BTCUSDT"][-1]["close"]
    open_price = self.data_map["bybit-linear|candles?interval=1m&symbol=BTCUSDT"][-1]["open"]

async def on_candle_closed(self, strategy, topic, symbol):
    # refer to provider models
    inflow_total = self.data_map["cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day"][-1]["inflow_total"]
    inflow_mean = self.data_map["cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day"][-1]["inflow_mean"]

A simple runnable strategy example you can use:

from cybotrade.strategy import Strategy
from cybotrade.models import RuntimeConfig, RuntimeMode
from datetime import datetime, timezone
from cybotrade.permutation import Permutation
import asyncio

class MyStrategy(Strategy):
    async def on_datasource_interval(self, strategy, topic, data_list):
        # prints inflow total data
        print(self.data_map[topic][-1]["inflow_total"])

    async def on_candle_closed(self, strategy, topic, symbol):
        # prints candle close price
        print(self.data_map[topic][-1]["close"])

config = RuntimeConfig(
    mode=RuntimeMode.Backtest,
    datasource_topics=["cryptoquant|btc/exchange-flows/inflow?exchange=binance&window=day"],
    candle_topics=["bybit-linear|candles?interval=1d&symbol=BTC/USDT"],
    active_order_interval=1,
    start_time=datetime(2020, 4, 1, 0, 0, 0, tzinfo=timezone.utc),
    end_time=datetime(2024, 1, 1, 0, 0, 0, tzinfo=timezone.utc),
    data_count=100,
    api_key="YOUR_API_KEY",
    api_secret="YOUR_API_SECRET"
)

permutation = Permutation(config)
hyper_parameters = {}

async def start_runtime():
    await permutation.run(hyper_parameters, MyStrategy)

asyncio.run(start_runtime())
